NOBO-ZC-4 Spring Assembly Machine Max Width 2000mm Servo Motor 4.5KW

NOBO-ZC-4 Spring Assembly Machine Max Width 2000mm Servo Motor 4.5KW

Spring Assembly Machine Servo Motor

2000mm Spring Assembly Machine

spring assembly machine 4.5KW

Place of Origin:

Foshan,china

Brand Name:

NOBO

Certification:

CE

Model Number:

NOBO-ZC-4

Contact Us

Request A Quote
Product Details
Work Efficiency:
50-80 Units/8 Hours
Maximum Width Of The Bed Nets:
2000mm(option2000mm)
Adaption Bed Nets High:
80-180mm
Spring Wire Diameter:
2.0-2.4mm
String Of Spring Steel Wire Diameter:
1.3-1.6mm
The Total Electric Power:
4.5KW
Weight Of Machines:
950kg
Electrical Source:
3 Phase 380V/50HZ
Figure Size:
Length 3150 X Width1730 X High1810mm
Payment & Shipping Terms
Minimum Order Quantity
1 Sets
Price
Negotiable
Packaging Details
Standard packing
Delivery Time
15-45 work days
Payment Terms
T/T, L/C
Supply Ability
2 Set/Sets per Month
Product Description

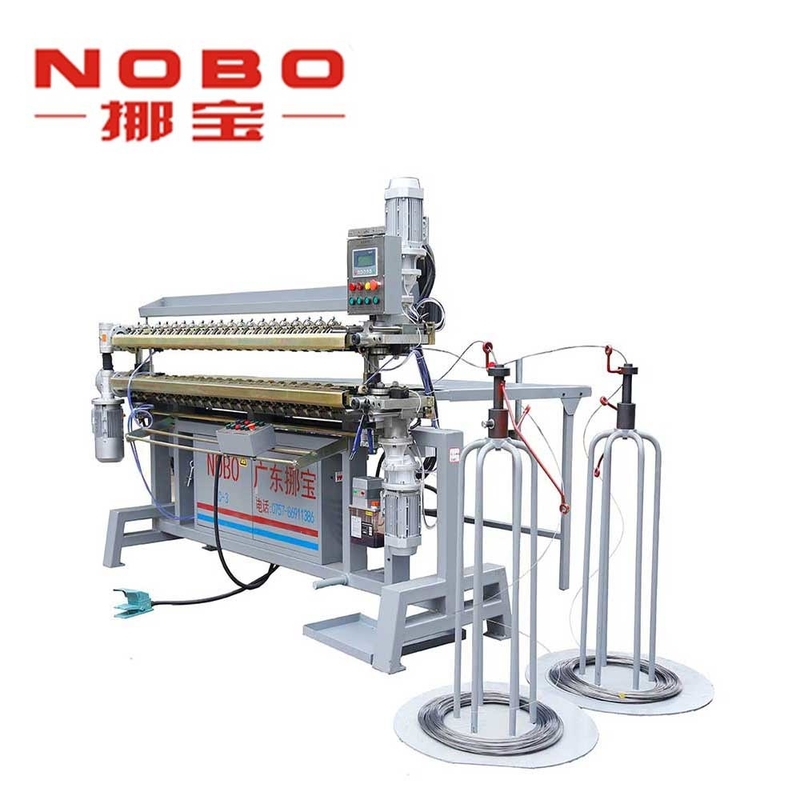

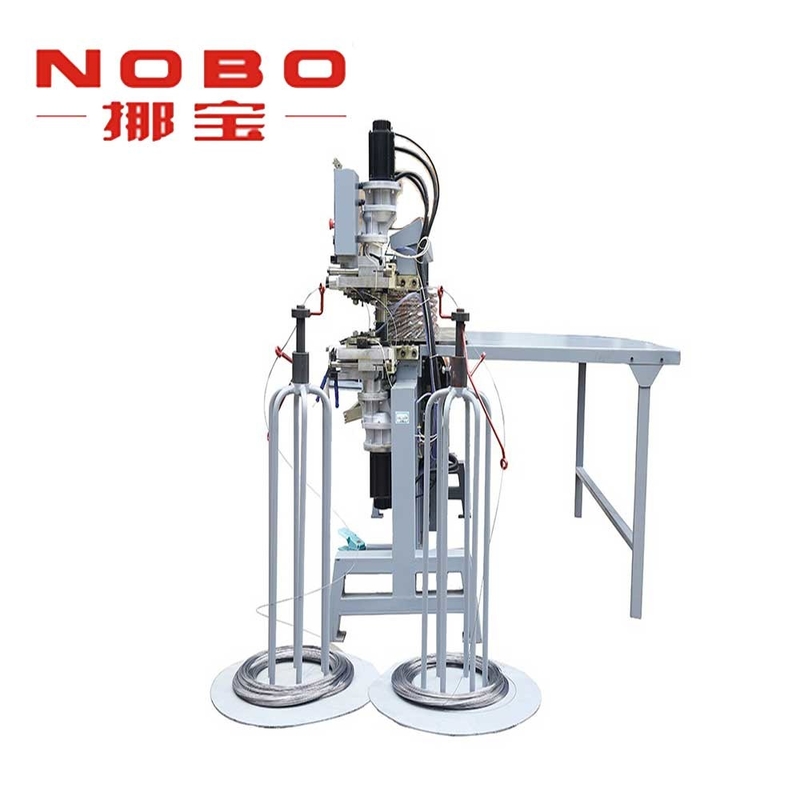

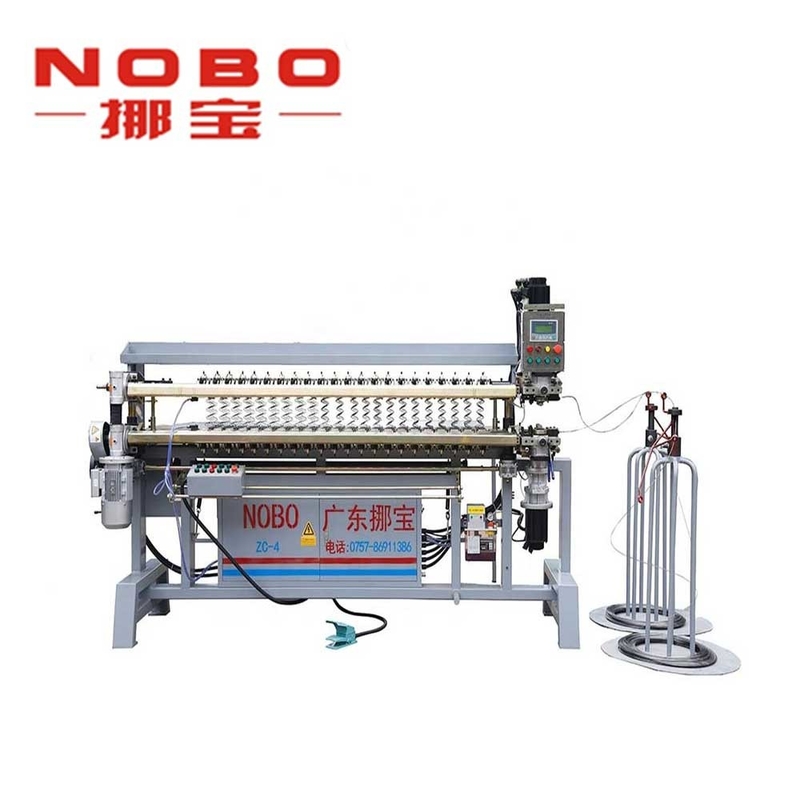

Servo Motor Spring Assembly Machine

NOBO-ZC-4 is the specialized assembly equipment of spring bed nets and seat which needs only one

person to put on the expected spring so that can achieve up and down at the same time network series.

Technical data:

Work Efficiency:

50-80 units/8 hours

Maximum width of the bed nets:

2000mm(option2000mm)

Adaption bed nets high:

80-180mm

Spring wire diameter:

2.0-2.4mm

String of spring steel wire diameter:

1.3-1.6mm

The total electric power:

4.5KW

Weight of machines:

950kg

Electrical source:

3 phase 380V/50HZ

Figure size:

length 3150 x width1730 x high1810mm

Applies to spring-caliber:

58 Fixture Series 55-56mm

68 Fixture Series 65-70mm

78 Fixture Series 65-73mm

88 Fixture Series75-82mm

98 Fixture Series 82-90mm
