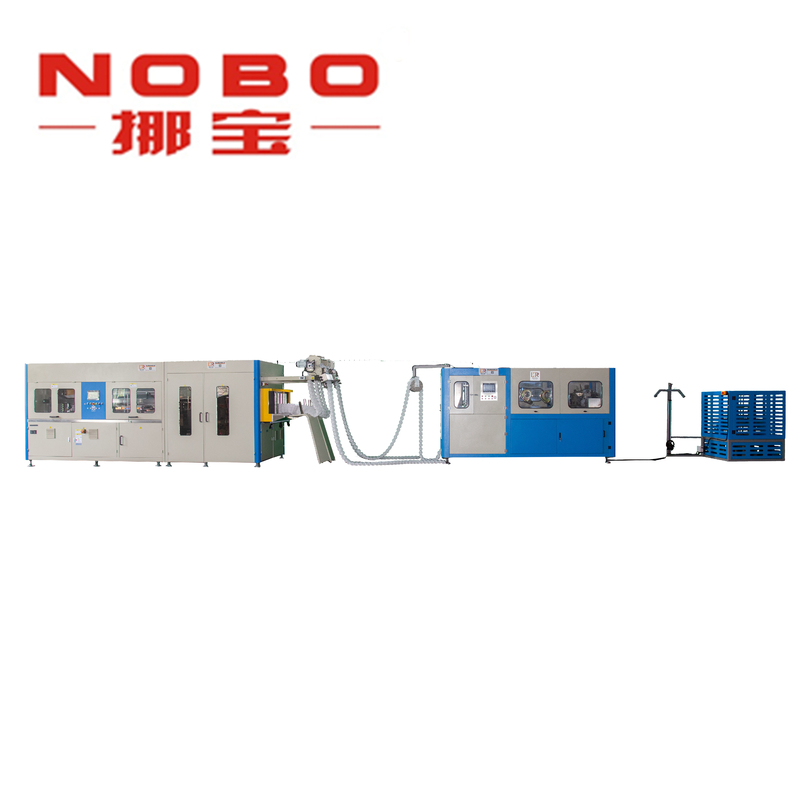

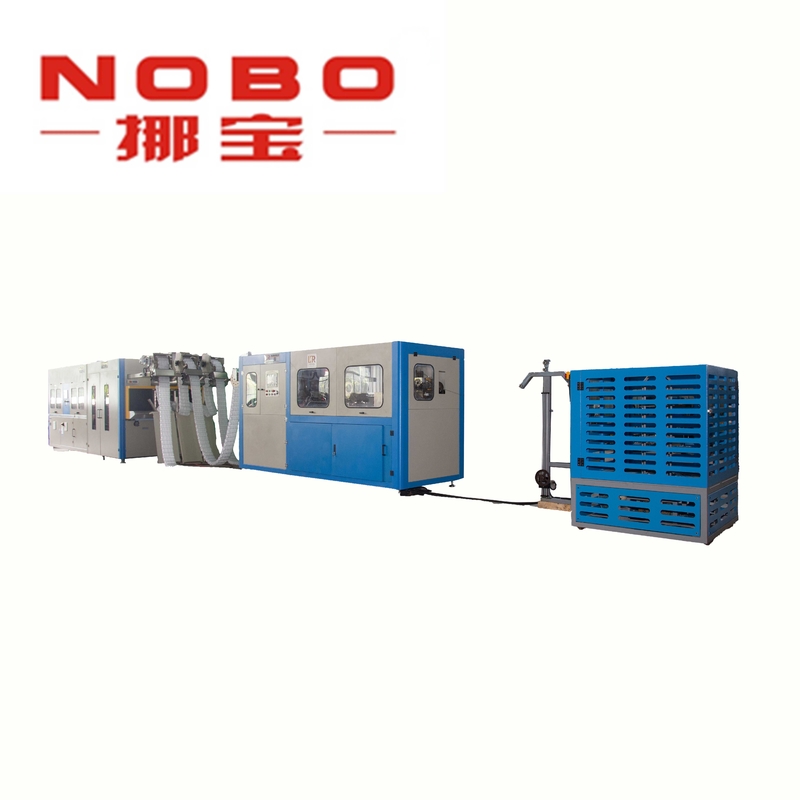

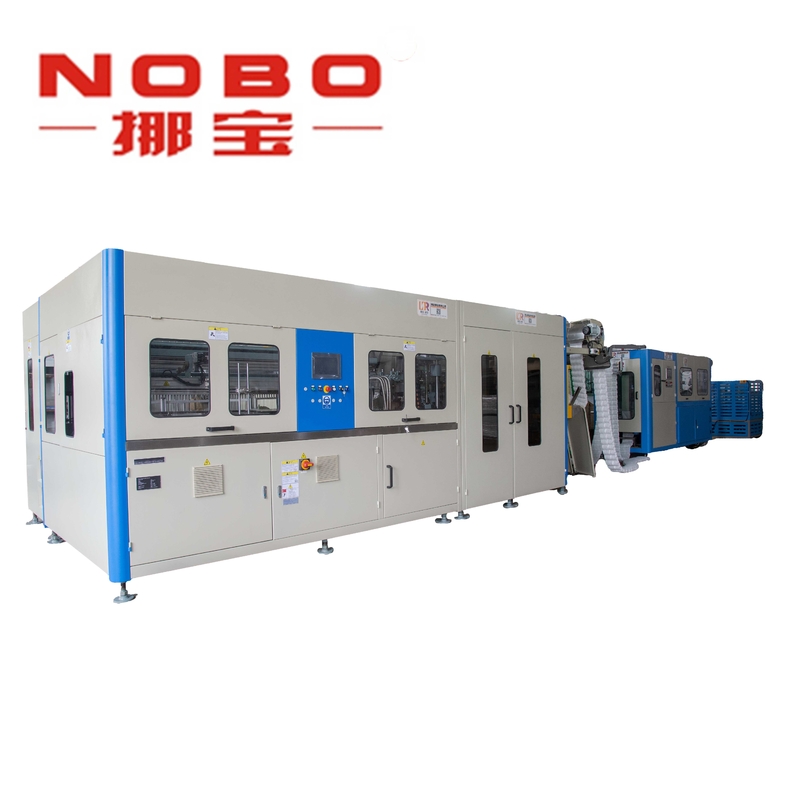

CE Mattress Packing Pocket Spring Machine 120 Springs/Min Production Line

CE Mattress Packing Pocket Spring Machine 120 Springs/Min Production Line

CE Mattress Packing Pocket Spring Machine

120 Springs/Min Pocket Spring Machine

barrel cylindrical pocket spring mattress machine

Place of Origin:

Foshan,china

Brand Name:

NOBO

Certification:

CE

Model Number:

LN-120

Contact Us

Request A Quote
Product Details
Spring Type:
Pocket Spring
Capacity:
120springs/min.
Air Pressure:
0.6-0.7 Mpa
Spring Shape:
Standard Versions: Barrel And Cylindrical
Total Power:
Approx. 38KW
Weight:
Approx. 3600KG
Power Requirement:
3AC 380V(50/60 Hz)
Machine Size:
9000*1700*2200mm
Payment & Shipping Terms
Minimum Order Quantity
1 Sets
Price
Negotiable
Packaging Details
Standard packing
Delivery Time
15-45 work days
Payment Terms
T/T, L/C
Supply Ability
2 Set/Sets per Month
Product Description

Mattress Packing Pocket Spring Machine Production Line

LN-120 latest model for producing "Bonell" type innerspring units. It can produce innerspring units

directly from wire.Firstly the steel wire is coiled to a spring, and then transferred and inserted to the

assembler by the automatic feeding system.After this,the upper and lower springs are coiled together

at the same time and helical wire is coiled, cut and clamped at bothend automatically. When a unit is

finished, it could be ejected automatically.



Electronic control automatic glue pocket spring assembly machine



1. Adopt Plc Program Control And Full Touch Screen Operation.

2. Suitable For Assembling Spring Rows To Be Mattress.

3. Equip With Imported Glue Tank, Adopt Servo Control System For Pushing Feeding Spring Rows Accurately And Fast

4. Available For Upper And
Lower Non-Woven Gluing, Automatic Cutting, Continuous Or Intermittent Spraying, Easy To Operate, High Degree Automation, Saving
The Glue And Reducing The Costs .

5. Capacity Can Reach 15-20 Rows Pocket Springs Per Minute



LN-120

Consumption Material Data

Production capacity

120springs/min.

Non-woven fabric

Coiling head

One servo coiling head

Double wires coiling head

Fabric density

65~90g/m²

Working principle

Servo control

Fabric width

360-600mm

Spring shape

Standard versions: barrel and cylindrical

Inner dia. of fabric roll

Min. 75mm

Air consumption

Approx. 0.25m³/min.

Outer dia. of fabric roll

Max. 1000mm

Air pressure

0.6-0.7 mpa

Steel wire

Power consumption in total

Approx. 38KW

Approx. 43KW

Wire diameter

1.3-2.3mm

Voltage

3AC 380V

Inner dia. of wire roll

Min. 320mm

Frequency

50/60 Hz

Outer dia. of wire roll

Max. 1000mm

Input current

55A

65A

Acceptable weight of wire roll

Max. 600kg

Cable section

3*16mm² + 2*10mm²

1. Fast And Stable, Production Output: 120 Springs/Min. Low Failure Rate



2. Online Settings And After Sales Service Chief Engineer. Can Be Remote Access Contact User Permission Line Mechanical.

Working temperature

+5°C~+35°C

Weight

Approx. 3600KG

Approx. 3800KG

Size

9000*1700*2200mm

9000*3A200*2200mm





Electronic control automatic glue pocket spring assembly machine



Production capacity
10-14 strings/min
Capacity of glue tank
15kg/18kg/30kg
Gluing method
Continuous gluing mode/interrupted gluing mode
Control of assembling platform
Electronic control
Possibility of assembling zoned tape
Possible
Possibility of assembling zoning mattress
Possible
Air consumption
0.3 m³/min
Air pressure
0.6-0.7 mpa
Power consumption in total
15KW
Voltage
3AC 380V
