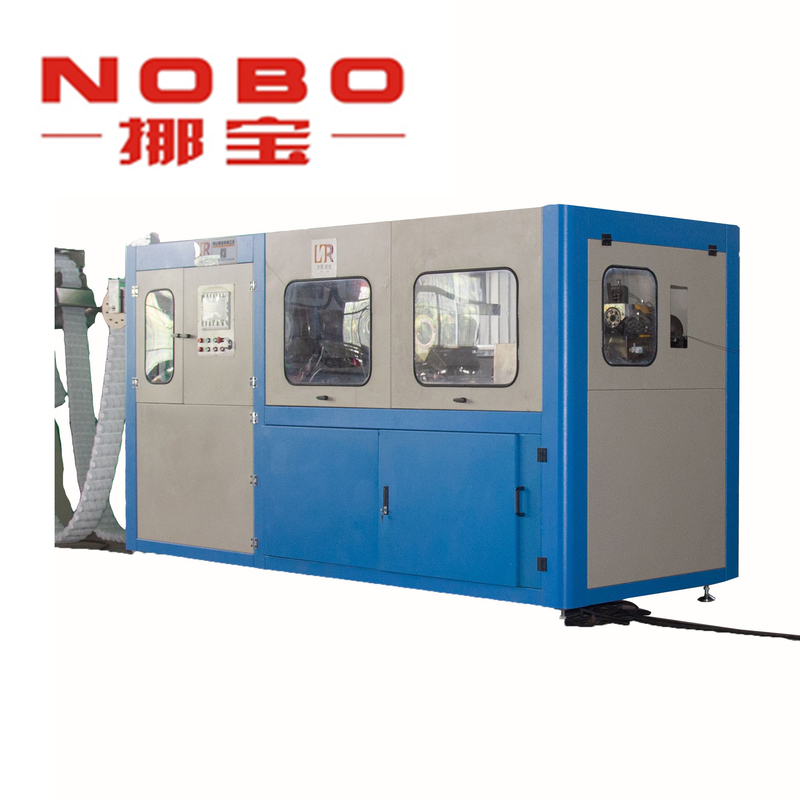

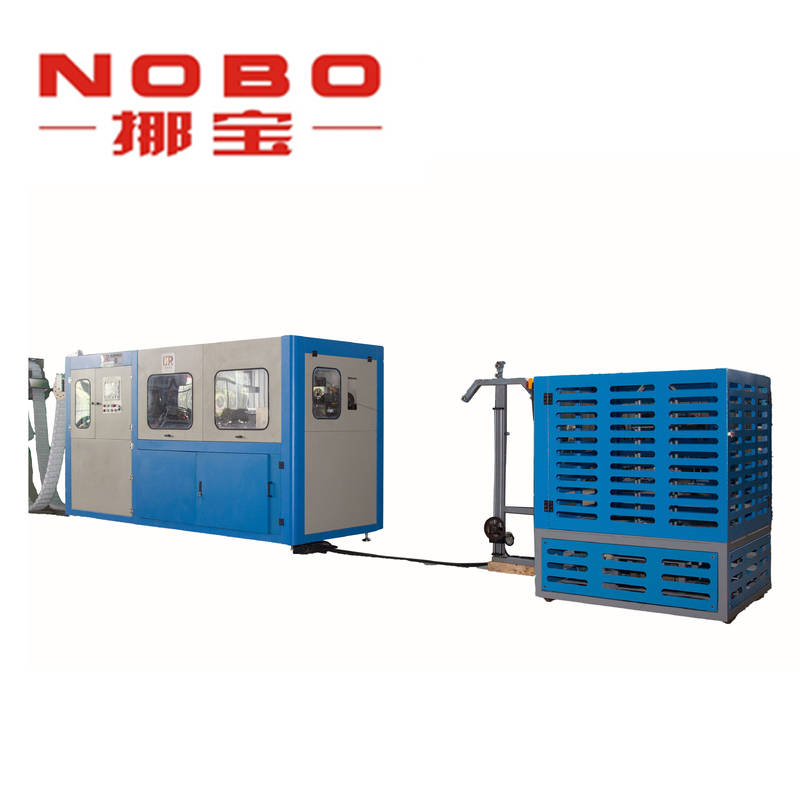

LN-120 Mattress Packing Machine Pocket Spring Machine 38KW 120 Springs/Min Bonell Type

LN-120 Mattress Packing Machine Pocket Spring Machine 38KW 120 Springs/Min Bonell Type

CE Pocket Spring Mattress Packing Machine

Bonell Type Mattress Packing Machine

38KW Pocket Spring Machine

Place of Origin:

Foshan,china

Brand Name:

NOBO

Certification:

CE

Model Number:

LN-120

Contact Us

Request A Quote
Product Details
Spring Type:
Pocket Spring
Capacity:
120springs/min.
Air Pressure:
0.6-0.7 Mpa
Spring Shape:
Standard Versions: Barrel And Cylindrical
Total Power:
Approx. 38KW
Weight:
Approx. 3600KG
Power Requirement:
3AC 380V(50/60 Hz)
Machine Size:
9000*1700*2200mm
Payment & Shipping Terms
Minimum Order Quantity
1 Sets
Price
Negotiable
Packaging Details
Standard packing
Delivery Time
15-45 work days
Payment Terms
T/T, L/C
Supply Ability
2 Set/Sets per Month
Product Description

Mattress Packing Pocket Spring Machine

LN-120 latest model for producing "Bonell" type innerspring units. It can produce innerspring units

directly from wire.Firstly the steel wire is coiled to a spring, and then transferred and inserted to the

assembler by the automatic feeding system.After this,the upper and lower springs are coiled together

at the same time and helical wire is coiled, cut and clamped at bothend automatically. When a unit is

finished, it could be ejected automatically.

LN-120

Consumption Material Data

Production capacity

120springs/min.

Non-woven fabric

Coiling head

One servo coiling head

Double wires coiling head

Fabric density

65~90g/m²

Working principle

Servo control

Fabric width

360-600mm

Spring shape

Standard versions: barrel and cylindrical

Inner dia. of fabric roll

Min. 75mm

Air consumption

Approx. 0.25m³/min.

Outer dia. of fabric roll

Max. 1000mm

Air pressure

0.6-0.7 mpa

Steel wire

Power consumption in total

Approx. 38KW

Approx. 43KW

Wire diameter

1.3-2.3mm

Voltage

3AC 380V

Inner dia. of wire roll

Min. 320mm

Frequency

50/60 Hz

Outer dia. of wire roll

Max. 1000mm

Input current

55A

65A

Acceptable weight of wire roll

Max. 600kg

Cable section

3*16mm² + 2*10mm²

1. Fast And Stable, Production Output: 120 Springs/Min. Low Failure Rate



2. Online Settings And After Sales Service Chief Engineer. Can Be Remote Access Contact User Permission Line Mechanical.

Working temperature

+5°C~+35°C

Weight

Approx. 3600KG

Approx. 3800KG

Size

9000*1700*2200mm

9000*3A200*2200mm







NOBO(mattress) machinery co.,ltd



Company Profile

NOBO(mattress) machinery co.,ltd, was founded in 2007, at the beginning of the establishment is a

professional commitment to mattress machinery research and development, design, manufacturing,

sales and service of high-tech enterprises.

For many years the development of the NOBO mattress machinery company has become a

"mattress equipment" industry perfect production chain and sales service system of professional

manufacturers, the company has excellent sales team and technology development team, Listen

to the voice of the customer ,for customer service and customer Creating value is our eternal pursuit.



Business philosophy:

Quality first, customers pay back the community.

Quality guidelines: Customer-oriented quality Innovation and continuous improvement The quality

of services, ahead of the competition Full participation and achievement of objectives

Quality Objectives: To ensure product quality and credibility. To strengthen the competitiveness.

Customer demand to provide better products, so

that the customer satisfaction. Customer requirements for the goal to achieve quality in the first.

LN-120 Mattress Packing Machine Pocket Spring Machine 38KW 120 Springs/Min Bonell Type 0



LN-120 Mattress Packing Machine Pocket Spring Machine 38KW 120 Springs/Min Bonell Type 1



LN-120 Mattress Packing Machine Pocket Spring Machine 38KW 120 Springs/Min Bonell Type 2LN-120 Mattress Packing Machine Pocket Spring Machine 38KW 120 Springs/Min Bonell Type 3



LN-120 Mattress Packing Machine Pocket Spring Machine 38KW 120 Springs/Min Bonell Type 4LN-120 Mattress Packing Machine Pocket Spring Machine 38KW 120 Springs/Min Bonell Type 5



Main business:
Mattress spring making machine ,spring assembling machine, Conjoined coiling machine, Automatic

mattress spring making machine , Tape edge machine , Packing machine





LN-120 Mattress Packing Machine Pocket Spring Machine 38KW 120 Springs/Min Bonell Type 6LN-120 Mattress Packing Machine Pocket Spring Machine 38KW 120 Springs/Min Bonell Type 7





Ce certificate: Spring Makiing Machine & String Spring Machine

LN-120 Mattress Packing Machine Pocket Spring Machine 38KW 120 Springs/Min Bonell Type 8LN-120 Mattress Packing Machine Pocket Spring Machine 38KW 120 Springs/Min Bonell Type 9



Package&Shipping:

You can just tell us your needs and we will arrange everything from the initial consultaion to the delivery

of your chosen port anywhere in the world timely. All of our produrts are well packed to ensure the safety

of the products.



Packaging

Size

(L) * (W) * (D)mm

Weight

*kg

Packaging Details

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.





LN-120 Mattress Packing Machine Pocket Spring Machine 38KW 120 Springs/Min Bonell Type 10LN-120 Mattress Packing Machine Pocket Spring Machine 38KW 120 Springs/Min Bonell Type 11











Delivery:

Payment:

30% by T/T as down payment before production, and the rest 70% by T/T as balance payment before shipment.

Time of Delivery:

Within 20 days after receiving the buyer’s down payment.

Warranty:

The seller provides one year warranty of the main machine starting from the moment the buyer signs the acceptance certificate. For the wearing parts, consumption of materials and the damage incurred by the Buyer's incorrect operation are out of the warranty range.



Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.



LN-120 Mattress Packing Machine Pocket Spring Machine 38KW 120 Springs/Min Bonell Type 12





After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.





LN-120 Mattress Packing Machine Pocket Spring Machine 38KW 120 Springs/Min Bonell Type 13







FAQ:

1. who are we?

We are based in Guangdong, China, start from 2013,sell to Northern Europe(10.00%),Eastern Asia(10.00%),

Mid East(10.00%),Africa(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%),

North America(10.00%),South Asia(5.00%),Southern Europe(5.00%),Western Europe(5.00%),Central

America(5.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

3.what can you buy from us?

Automatic bunch of spring machine,Bonnell spring coiling machine,Mattress Border Frame Wire Bending,

Automatic Coiler Machine,Automatic side seamer of the bed cushion

4. why should you buy from us not from other suppliers?

We have 7 years production experience for mattress machine. In order to meet the market demand customer

need in accordance with special requirements of custom-made mattress production facilities.

5. what services can we provide?

Accepted Delivery Terms: FOB;

Accepted Payment Currency:USD;

Accepted Payment Type: T/T,L/C,D/P D/A;

Language Spoken:English,Spanish,Chinese
