Place of Origin:
Foshan,china
Brand Name:
NOBO
Model Number:
ZC-4
Contact Us
Video

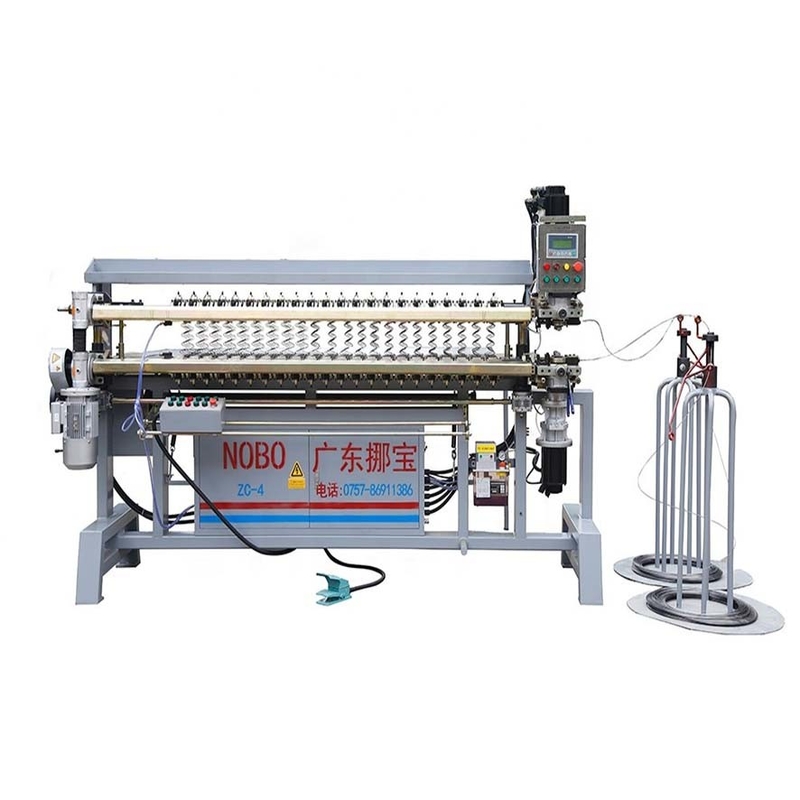

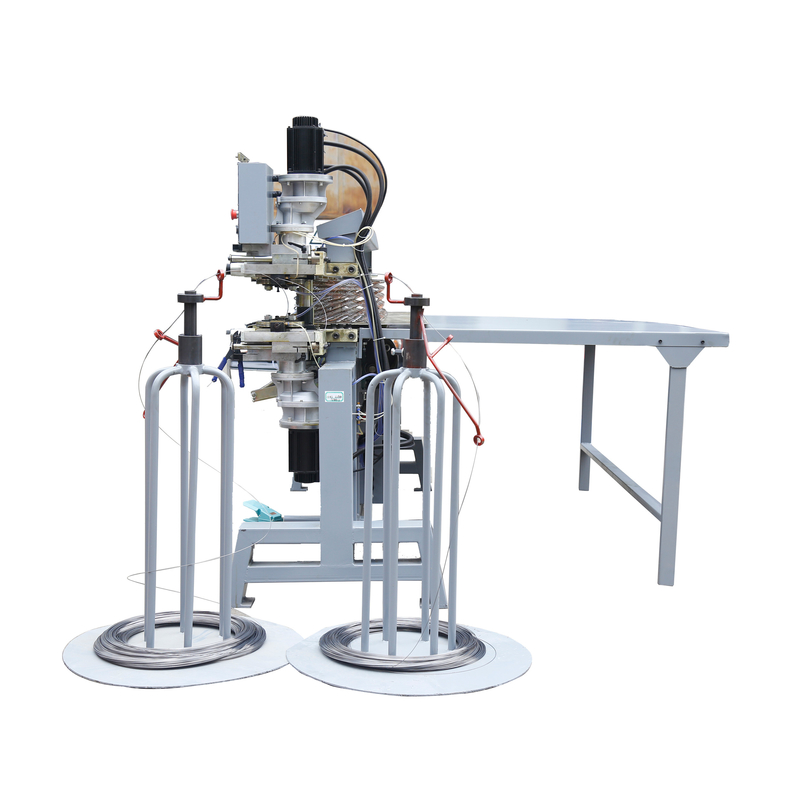

Spring Assembling Machine for mattress Servo motor Assembling machine assemble the spring mattress
NOBO-ZC-4 is the specialized assembly equipment of spring bed nets and seat which needs only one person to put on the expected spring so that can achieve up and down at the same time network series.
Technical data: |
|||
| Work Efficiency: | 50-80 units/8 hours | Maximum width of the bed nets: | 2000mm(option2000mm) |
| Adaption bed nets high: | 80-180mm | Spring wire diameter: | 2.0-2.4mm |
| String of spring steel wire diameter: | 1.3-1.6mm | The total electric power: | 4.5KW |
| Weight of machines: | 950kg | Electrical source: | 3 phase 380V/50HZ |
| Figure size: | length 3150 x width1730 x high1810mm | ||
| Applies to spring-caliber: |
58 Fixture Series 55-56mm 68 Fixture Series 65-70mm 78 Fixture Series 65-73mm 88 Fixture Series 75-82mm 98 Fixture Series 82-90mm |
||
